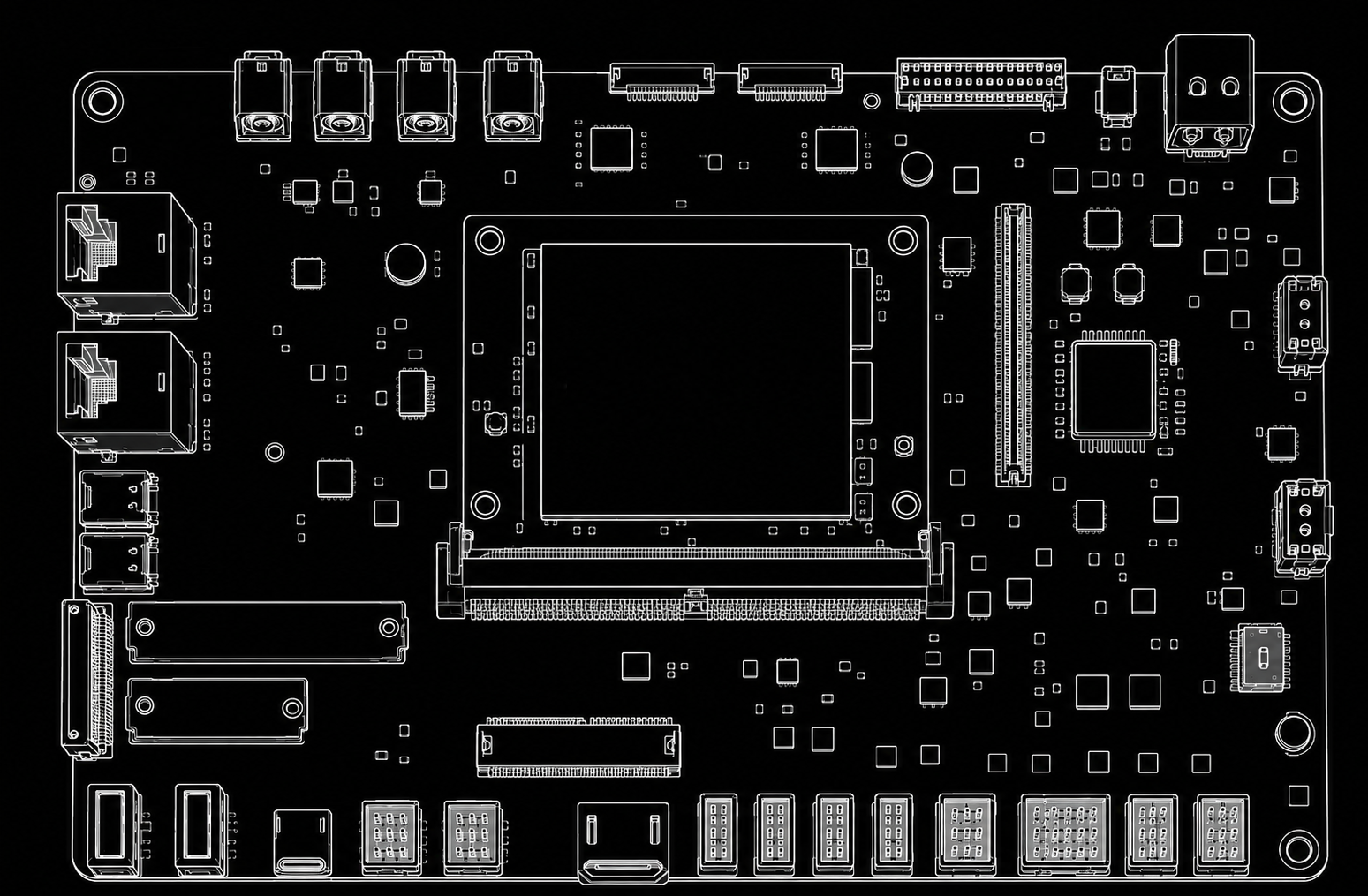

Jetson Orin Nano + Ground Robotics Carrier (GRC) Bundle
$ 1,271.00 USD
The NDAA-compliant Jetson Orin Nano + Ground Robotics Carrier (GRC) bundle is a USA-built embedded computer for unmanned ground vehicles and mobile robots. Built for real vehicle integration: 9–60V direct battery input with dual-battery hot-swap, 4x GMSL2 camera inputs for long-cable EO/IR/depth sensors, PoE+ on both Ethernet ports for LiDAR, and 3x CAN-FD for motor controllers. Boots into a validated ROS 2 / Isaac ROS / Nav2 image, so perception and navigation stacks run out of the box. Full BOM traceability and NDAA §889 compliance make it eligible for US defense and security UGV programs. Supported through 2032 on NVIDIA's product longevity roadmap.
Specifications
Compute Module
NVIDIA Jetson Orin Nano (8GB or 4GB), pre-installed heatsink
AI Performance
Up to 67 TOPS (Super Mode), 1024-core Ampere GPU, 32 Tensor Cores
CPU
6-core Arm Cortex-A78AE
Memory
8GB or 4GB LPDDR5, up to 102 GB/s
Power
9–60V vehicle input, dual-battery hot-swap, module power 7–25W
Networking
2x GbE/2.5GbE with PoE+ for LiDAR, Wi-Fi 6E / 5G-LTE M.2
Camera Inputs
4x GMSL2 (Fakra) + 2x MIPI CSI-2
Industrial I/O
3x CAN-FD, 2x RS-485/Modbus, 4x UART, 12x GPIO
Software
ROS 2 / Isaac ROS / Nav2 validated image
Compliance
NDAA §889 compliant, USA built, full BOM traceability
Dimensions
~110 × 100 × 35mm (with module + heatsink)
